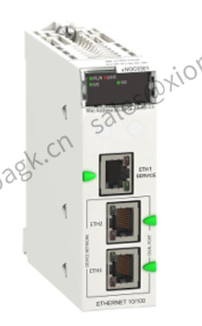

The Schneider Electric Modicon M580 BMENOC0301 Ethernet Network Interface Module is a critical communication component for the advanced M580 ePAC platform. Designed to meet the demands of modern industrial networking, this module provides high-speed, redundant connectivity while supporting multiple industrial protocols simultaneously.

Key Features & Benefits:

• Dual Gigabit Ethernet Ports: Features two 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto-MDIX, providing high-bandwidth communication and built-in switch functionality for daisy-chaining multiple devices.

• Multi-Protocol Support: Simultaneously supports major industrial protocols including Modbus TCP, Ethernet/IP, and TCP/IP, enabling seamless integration with various devices and systems.

• Built-in Switch Functionality: Allows daisy-chaining of network devices without additional hardware, reducing wiring complexity and saving control panel space.

• Enhanced Network Redundancy: Supports network redundancy protocols such as RSTP (Rapid Spanning Tree Protocol) for improved network availability and fault tolerance.

• Seamless Integration: Fully compatible with EcoStruxure Control Expert programming software, providing intuitive configuration and comprehensive diagnostic capabilities.

• Advanced Diagnostics: Features comprehensive LED status indicators for port activity, link status, and network health, enabling rapid troubleshooting and maintenance.

• Robust Industrial Design: Built to operate reliably in harsh industrial environments with extended temperature range, high immunity to electrical noise, and vibration resistance.

Technical Specifications:

• Ports: 2 x 10/100/1000Base-T RJ45

• Protocols: Modbus TCP, Ethernet/IP, TCP/IP

• Switch Function: Built-in 2-port switch

• Redundancy: RSTP support

• Configuration: EcoStruxure Control Expert

• Operating Temperature: -40°C to +70°C

Typical Applications:

• High-speed process control systems

• Large-scale manufacturing automation

• Infrastructure and building management

• Water and wastewater treatment plants

• Energy management systems

• Transportation and logistics systems

The BMENOC0301 Ethernet module exemplifies Schneider Electric's commitment to providing advanced networking solutions for modern industrial automation, offering reliable, high-speed connectivity that meets the demands of Industry 4.0 applications while ensuring backward compatibility with existing systems.
