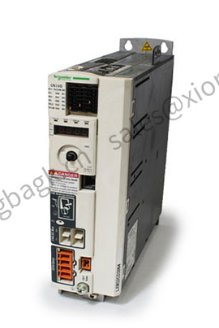

The Schneider Electric Lexium 32 LXM32CD18M2 represents advanced servo drive technology designed for efficient, maintenance-free operation. This 1.8kW drive utilizes natural convection cooling, making it ideal for applications where noise reduction, reliability, and minimal maintenance are critical requirements.

Model Number Analysis:

• LXM32: Lexium 32 series

• C: Compact design

• D: Drive unit

• 18: 1.8kW power rating

• M2: Generation and specific features

Key Features & Benefits:

• Natural Convection Cooling: Fanless design eliminates moving parts, reducing maintenance needs and providing silent operation perfect for noise-sensitive environments.

• High Power Density: Delivers 1.8kW output power in a compact form factor, optimizing control cabinet space utilization while maintaining excellent thermal performance.

• Advanced Control Technology: Features sophisticated digital signal processing for precise current, velocity, and position control, ensuring accurate motor performance across various applications.

• Integrated Safety Functions: Includes built-in safety features such as Safe Torque Off (STO) and other safety functions, helping meet machine safety standards and SIL/PL requirements.

• EcoStruxure Compatibility: Seamlessly integrates with Schneider Electric's EcoStruxure architecture, enabling connected motion control and data analytics for predictive maintenance.

• Multi-Feedback Support: Compatible with various feedback devices including absolute encoders and resolvers, providing flexibility in motor selection and system design.

• Comprehensive Connectivity: Supports multiple communication protocols including EtherCAT, CANopen, and Modbus TCP, enabling easy integration into diverse automation networks.

Technical Specifications:

• Rated Power: 1.8 kW

• Cooling Method: Natural convection (fanless)

• Input Voltage: 3-phase 200-240V AC

• Communication: EtherCAT, CANopen, Modbus TCP

• Safety Functions: STO (Safe Torque Off)

• Ambient Temperature: 0°C to +55°C (with derating above 45°C)

• Protection Rating: IP20

Typical Applications:

• Packaging machinery
  * Textile equipment
  * Printing and converting machines
  * Electronic assembly systems
  * Medical equipment
  * Food and beverage processing
  * Other noise-sensitive environments

The LXM32CD18M2 servo drive exemplifies Schneider Electric's commitment to providing innovative, efficient, and reliable motion control solutions. Its combination of fanless operation, compact design, and advanced features makes it an ideal choice for modern industrial automation applications requiring quiet, maintenance-free operation.
