Overview

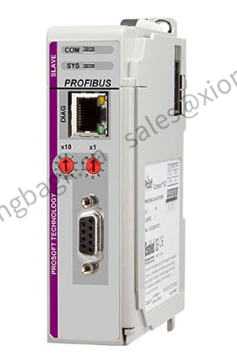

The Anybus ILX69-PBS from HMS Networks is a dedicated communication module designed to bridge the gap between Allen-Bradley's CompactLogix platform and the widely adopted PROFIBUS-DP fieldbus. By plugging directly into the 1769 backplane, it allows a CompactLogix controller to function as a slave device on a PROFIBUS network, facilitating efficient data exchange with any PROFIBUS master (e.g., a Siemens S7 PLC).

Key Features & Benefits:

• PROFIBUS DPV1 Slave Functionality: Complies with the advanced PROFIBUS DPV1 specification, supporting cyclical data exchange and acyclic communication for parameterization, diagnostics, and alarms.

• Native CompactLogix Integration: Installs directly into the CompactLogix I/O rack and is configured using the standard Rockwell Automation Studio 5000 Logix Designer software, minimizing setup complexity.

• Bidirectional Data Mapping: Transparently maps I/O data between the CompactLogix controller's tag database and the PROFIBUS master, ensuring real-time control and monitoring.

• Simple Configuration: The module's parameters and data mapping are easily set within the Studio 5000 environment, using a pre-defined Add-On Profile (AOP), streamlining the commissioning process.

• Rugged Industrial Design: Built to operate reliably in demanding industrial environments, ensuring stable network performance.

Technical Specifications:

• Host Platform: Allen-Bradley CompactLogix / CompactGuardLogix (1769 Backplane)

• Network Protocol: PROFIBUS-DP, conforming to DPV1 slave specification

• PROFIBUS Interface: 1 x RS-485 port, supporting data rates up to 12 Mbps.

• Power Supply: Powered directly from the 1769 backplane.

Typical Applications:
This module is ideal for applications where a CompactLogix system needs to be integrated as a subordinate device into a larger PROFIBUS automation system. Common use cases include:

• Integrating a CompactLogix-controlled machine or cell into a main production line controlled by a Siemens S7 PLC acting as the PROFIBUS master.

• Allowing a CompactLogix PLC to provide process data to a central PROFIBUS-based SCADA system.

• Enabling data exchange between legacy PROFIBUS equipment and a modern CompactLogix controller when the CompactLogix is configured as the slave node.
