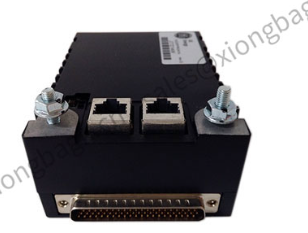

The GE IS220PPRFH1B is a specialized Profibus DP master communication module developed for the Mark VIe turbine control system platform. This module serves as a critical interface between the control system and Profibus DP field devices, enabling seamless data exchange and device integration in industrial automation networks.

Key Technical Features:

• Profibus DP Master Functionality: Implements DP-V1 protocol specification for comprehensive device support

• High-Speed Communication: Supports data rates up to 12 Mbps for real-time control applications

• Multiple Slave Support: Capable of managing up to 125 slave devices on a single network

• Diagnostic Capabilities: Comprehensive network diagnostics and slave status monitoring

• Redundant Configuration: Supports redundant network topology for critical applications

Technical Specifications:

• Protocol: Profibus DP-V1 (IEC 61158/61784)

• Data Rates: 9.6 kbps to 12 Mbps (auto-negotiation)

• Maximum Stations: 125 slaves per segment

• Connection: 9-pin D-sub connector (RS485)

• Isolation: 1500V AC isolation

• Operating Temperature: 0°C to +60°C

• Power Consumption: 5W typical

Typical Applications:

• Turbine control system integration

• Process automation networks

• Distributed I/O system communication

• Drive system integration

• Field device networking

The IS220PPRFH1B module demonstrates GE's commitment to industrial communication standards, providing reliable Profibus DP connectivity that ensures seamless integration of field devices into Mark VIe control systems for optimal operational performance.
