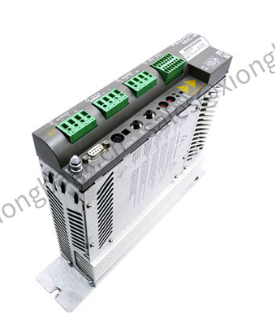

The Schneider Electric ELAU MC4-11/03/400 Servo Drive Module represents advanced motion control technology within the PacDrive automation ecosystem. This drive is engineered to deliver exceptional dynamic performance and precision for the most demanding industrial automation applications, particularly in packaging, processing, and material handling equipment.

Model Number Decoding:

• MC-4: Series designation

• 11: 11A continuous output current

• 03: 3-phase 400V AC input voltage

• 400: Specific configuration/software version

Key Features & Benefits:

• High Power Density: Delivers 11A continuous current in a compact form factor, optimizing control cabinet space utilization while providing substantial power for demanding servo applications.

• Advanced Control Capabilities: Features sophisticated digital signal processing for precise current, velocity, and position control, ensuring smooth and accurate motor operation across a wide range of speeds and loads.

• Integrated Safety Functions: Supports built-in safety features including Safe Torque Off (STO) and other safety functions, enhancing machine safety and helping meet SIL 3/PL e safety standards.

• PacDrive System Integration: Seamlessly integrates with the broader PacDrive automation system, allowing for unified programming and configuration within the IEC 61131-3 compliant EcoStruxure Machine Expert software platform.

• Multi-Feedback Support: Compatible with various feedback devices including absolute encoders, resolvers, and sin/cos encoders, providing flexibility in motor selection and system design.

• Comprehensive Connectivity: Features multiple communication interfaces including Ethernet and SERCOS, enabling easy integration into various network architectures and real-time communication with system controllers.

• Advanced Diagnostics: Provides extensive diagnostic capabilities and status monitoring through LED indicators and software interfaces, facilitating quick troubleshooting and preventive maintenance.

Typical Applications:

• High-speed packaging machinery (form-fill-seal, cartoning, wrapping)

• Precision processing equipment

• Robotics and automated assembly systems

• Material handling and conveyor systems

• Printing and converting equipment

• Other applications requiring coordinated multi-axis motion control

The MC4-11/03/400 servo drive exemplifies Schneider Electric's commitment to providing robust, intelligent motion solutions that enhance machine performance, flexibility, and reliability in the most demanding industrial environments.
