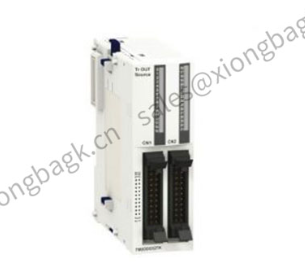

The Schneider Electric Modicon TM2DDO32TK is a high-density discrete output module designed to expand the capabilities of Modicon TM2 series controllers. It forms a crucial link between the PLC's logic decisions and physical actions in the field by switching 24V DC power to connected devices.

This module is engineered for space-efficient control cabinets and applications requiring the control of numerous outputs. The transistor output technology provides faster switching speeds and longer life compared to relay outputs, making it ideal for high-speed operations like packaging, sorting, and repetitive automation tasks.

Key Features & Benefits:

• High Point Density: Provides 32 output points on a single module, maximizing I/O count per rack slot and minimizing the overall footprint of the control system.

• Sink Output Configuration (TK): The outputs act as switches to ground (sink), meaning the common terminal is connected to the positive voltage supply. This is a common configuration in many industrial regions and applications.

• Fast Switching & Long Life: Semiconductor-based transistor outputs enable high-speed switching (enabling faster machine cycles) and offer a virtually unlimited mechanical lifespan, reducing maintenance needs.

• Integrated Diagnostics: Features per-point LED status indicators for quick visual confirmation of output state, greatly simplifying wiring, commissioning, and troubleshooting.

• Seamless Integration: Snap-fit design allows for easy, tool-less installation and removal on the TM2 base unit. It is fully configured and programmed within the SoMachine or EcoStruxure Machine Expert software platform.

• Robust Design: Built to withstand the typical industrial environment, including noise immunity and stable performance.

Typical Applications:

• Controlling solenoid valves in pneumatic or hydraulic systems.

• Activating indicators, alarms, and warning lights.

• Driving small relays and contactors that control higher-power loads.

• Automation of packaging machinery, conveyor systems, and material handling equipment.

• Any application requiring a high number of on/off control signals with 24V DC.

The TM2DDO32TK exemplifies Schneider Electric's commitment to providing flexible, compact, and reliable I/O solutions for machine builders, offering a perfect balance of performance, density, and value within the Modicon TM2 and broader MachineStruxure ecosystem.
