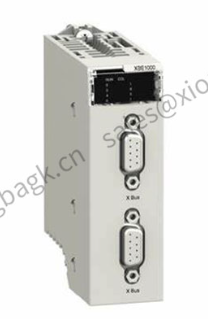

The Modicon BMXXBE1000H Rack Extension Module is a critical component for engineers designing scalable and spatially efficient automation architectures with the Modicon M340 PLC platform.

Industrial applications often require a distributed I/O layout due to space constraints or the physical separation of machine segments. The BMXXBE1000H addresses this need by providing a reliable link between a primary (local) M340 rack (e.g., a BMX XBP 0400) and a secondary (remote) expansion rack. This allows I/O modules to be placed closer to the sensors and actuators they control, significantly reducing field wiring costs and improving signal integrity.

Key Features & Benefits:

• Extended System Capacity: Effectively doubles the available space for I/O and communication modules by adding a second rack, overcoming the slot limitations of a single base.

• Long-Distance Connectivity: Supports a maximum extension distance of 100 meters between the two racks using a standard RG-58 coaxial cable (e.g., BMXXCA100HA), offering exceptional layout flexibility.

• High-Speed Data Exchange: Maintains a fast and deterministic data transfer rate between the CPU in the local rack and all I/O modules in the remote rack, ensuring synchronized system performance.

• Transparent Operation: The remote rack is treated as a direct extension of the local rack by the PLC CPU. All I/O points are configured and addressed seamlessly within the same Unity Pro or Control Expert project software.

• Simplified Installation: Designed for straightforward mounting and connection, featuring secure coaxial connectors to ensure a stable and noise-resistant communication link.

• LED Status Indicators: Provides clear visual diagnostics for power and communication status on both the local and remote modules, facilitating quick troubleshooting.

Typical Applications:

• Extending PLC systems across large control panels or to separate panels.

• Distributing I/O points across large machinery or production lines.

• Reducing long runs of individual sensor and actuator cables by using a single coaxial extension cable.

• Modular machine designs where different sections require dedicated local I/O racks.

The BMXXBE1000H exemplifies Schneider Electric's commitment to providing flexible and robust automation solutions, enabling builders to create optimized and cost-effective control systems with the reliable Modicon M340 platform.
