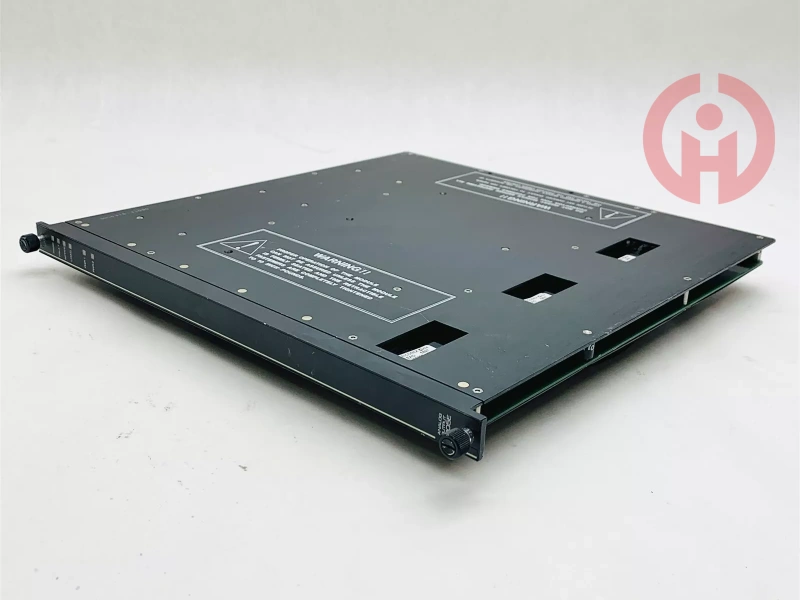

Product Introduction

performance

Output current range: 4-20mA output (+6% over range)

Over range protection:+ 42.5VDC, continuous

Leg fault switching time:< 10ms, typical

performance parameter

Output points: 8

Isolation point: None, public return, DC coupling

Resolution: 12 bits

Output accuracy:< 0.25% of FSR (0-21.2mA) (within 4-20mA range), 32 ° F to 140 ° F (0 ° C to 60 ° C)

Color Code: Bean Green

physical characteristics

Size: 16.3cm × 3.8cm × 5.8cm

Weight: 0.4kg

Functional Features

Self calibration and health monitoring: The module monitors its own current output, maintains internal voltage reference, and provides self calibration and module health information.

Channel diagnosis: Each channel and circuit has continuous diagnosis. If the diagnosis fails, the faulty channel will be disabled and the fault indicator and chassis alarm will be activated. The module can still operate normally even when up to two channels are faulty.

Prevent erroneous output: The design can prevent unselected channels from driving analog signals to the field.

Open loop detection: Provided by the LOAD indicator, the indicator will activate when the module is unable to drive current to one or more outputs.

Redundant power supply support: Provides redundant circuit power supply, with independent power supply and fuse indicators PWR1 and PWR2.

Application areas: Widely used in industries such as petrochemicals, refining, oil and gas, chemicals, electricity, rail transportation, aerospace, nuclear industry, etc. It has a wide range of applications in device safety interlock systems ESD, steam turbine control, gas turbine control, compressor anti surge control, offshore oil platforms, fire and gas monitoring and protection (F&G), etc
