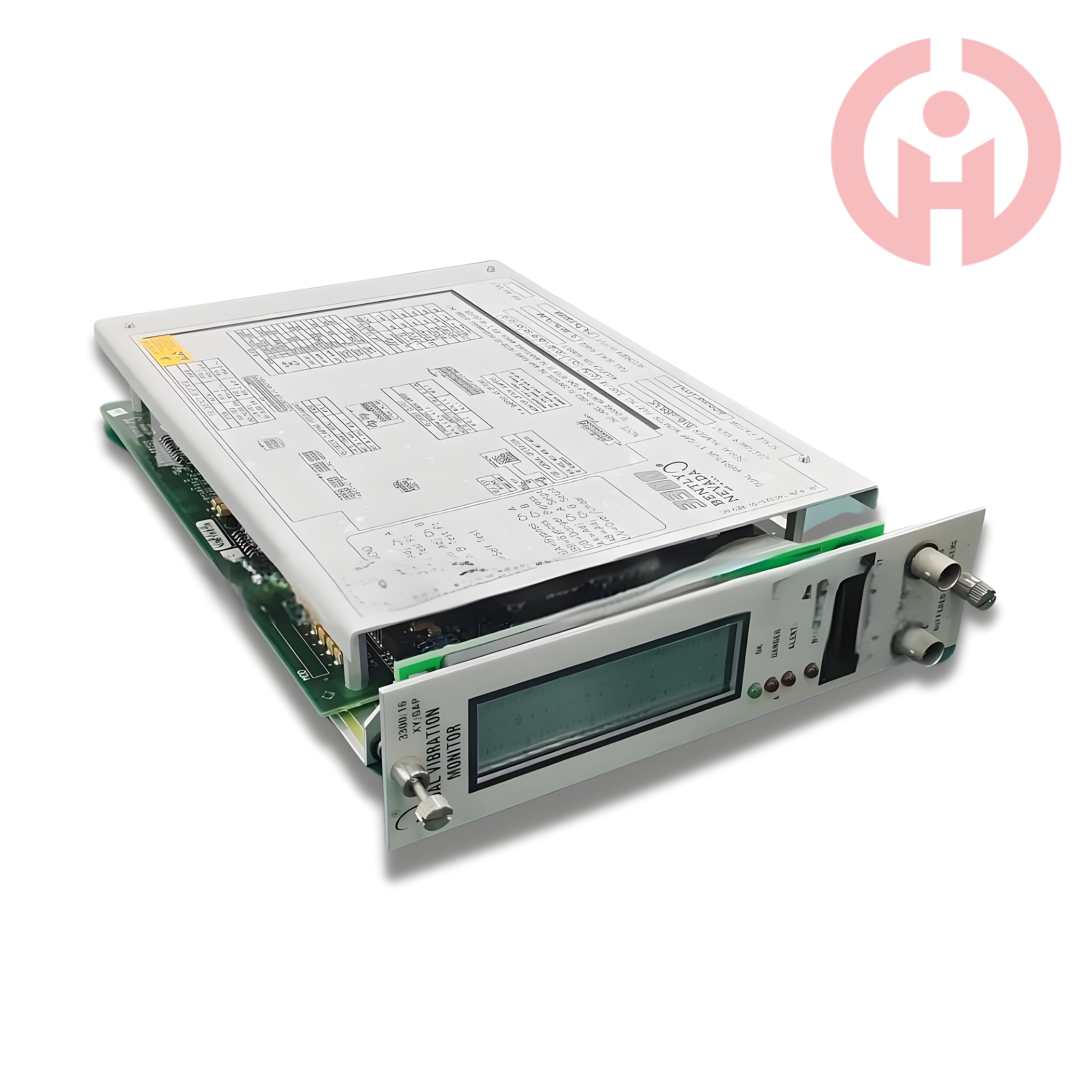

3300/16 Recorder Outputs

User-programmable between +4 and +20 mA, 0 and -10 Vdc, or +1 and +5 Vdc. The voltage or current outputs are

proportional to the full scale of the programmed monitor. For each channel, separate recorder outputs are provided.

Short circuits on recorder outputs have no effect on monitor operation.

The impedance of output (voltage outputs): 100 The lowest load resistance is 10 k.

Voltage Compliance (current outputs): 0 to +12 Vdc across the load range. When using the +4 to +20 mA option, the load

resistance is 0 to 600.

Accuracy of the recorder (in addition to signal conditioning accuracy) at +25°C (+77°F):

+4 to +20 mA: 0.7% of signal, 0.09 mA offset

+1 to +5 Vdc: 1.1 percent of signal with a 10 mV offset.

0 to -10 Vdc: 1.1% of signal, 15 mV offset
